DEHNIT Earthing Method

For improving and stabilising the earth electrode resistance.

Highly swellable, powdery and extremely moisture retaining special clay provides a conductive earth electrode enclosure and reduces the soil resistivity.

Detalles

1 Producto

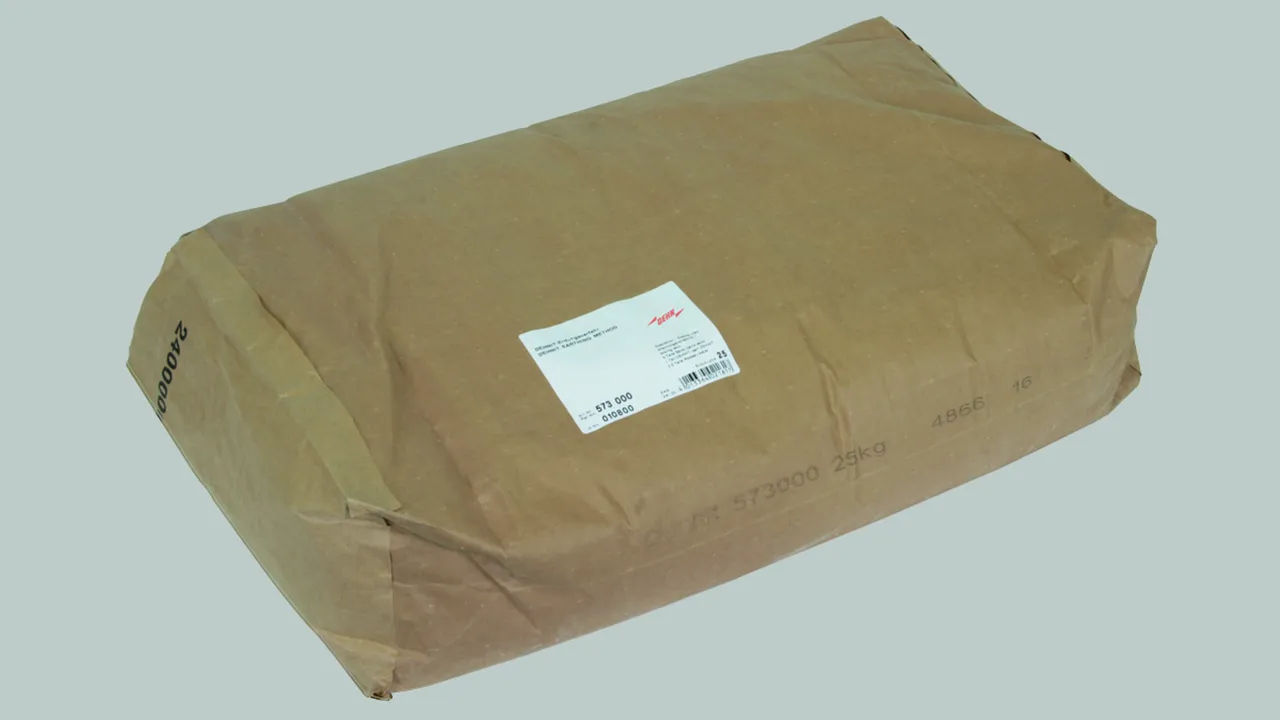

N.º art. 573000 DEHNIT 25KG

GTIN 4013364021617, N.º de arancel aduanero (EU): 25084000, Peso bruto: 25.00 kg/Stk, Empaquetado: 25.00 kg

Figuras

Más información

DEHNIT earthing method
DEHNIT earthing method
For improvement and stabilisation of the earth electrode resistance
The extremely swellable and powdery special clay can bind water very well and thus represents a conductive enclosure of the earth electrode which has a positive effect concerning the dissipation resistance.
Material: special clay
Mixture ratio [weight proportions in kg]: 5 parts sand / 1 part DEHNIT / 0.5 parts water

Brand: DEHN
Type: DEHNIT 25KG
Part No.: 573000
or equivalent.

Datos técnicos

Material	special clay
Mixture ratio [weight proportions in kg]	5 parts sand / 1 part DEHNIT / 0.5 parts water
^*) Sand compactness assumption: 1.23 t/m³

Material	special clay
Mixture ratio [weight proportions in kg]	5 parts sand / 1 part DEHNIT / 0.5 parts water
Example: 1,300 kg equates to approx. 1m³ ready DEHNIT mixture	Approx. 1,000 kg sand*⁾ / 200 kg DEHNIT / 100 kg water
Structure	powder
Colour	beige
Smell	no
Solubility in water	insoluble
pH value	approx. 7-11
^*) Sand compactness assumption: 1.23 t/m³
