Short-Circuiting Bar
:quality(98)/dehn.es/store/f/57084289/HDVORSCHAU/795020a1_16-9.jpg)
:quality(98)/dehn.es/store/f/57084289/HDVORSCHAU/795020a1_16-9.jpg)

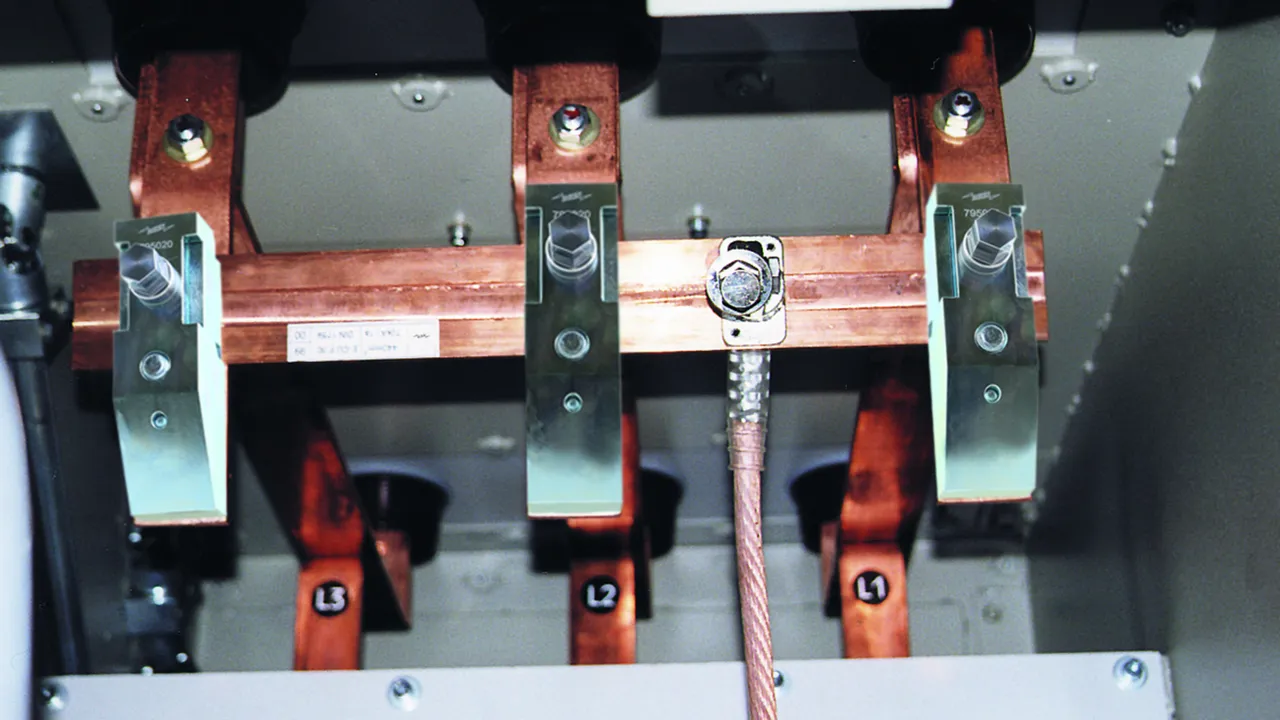

- Simply compile the right short circuit bar online
- Individual configuration
- Permanent plausibility check in the background
- With longitudinal slot for reliable contact
- High short-circuit current strength up to max. 130 kA / 0.5 s for low-voltage systems (LV) and 80 kA / 0.5 s for medium-voltage systems (MV)
- For use with earthing sticks for hexagon or T pin shafts
- Short-circuiting bar and earthing cable lengths can be selected online via the earthing and short-circuiting configurator
Detalles
:quality(98)/dehn.es/store/f/57084294/HDVORSCHAU/795040az1_E.jpg)
:quality(98)/dehn.es/store/f/57084294/HDVORSCHAU/795040az1_E.jpg)
:quality(98)/dehn.es/store/f/57084290/HDVORSCHAU/795038_2.jpg)
:quality(98)/dehn.es/store/f/57084290/HDVORSCHAU/795038_2.jpg)
:quality(98)/dehn.es/store/f/57084291/HDVORSCHAU/761010_1.jpg)
:quality(98)/dehn.es/store/f/57084291/HDVORSCHAU/761010_1.jpg)
:quality(98)/dehn.es/store/f/57084293/HDVORSCHAU/761011_1.jpg)
:quality(98)/dehn.es/store/f/57084293/HDVORSCHAU/761011_1.jpg)
:quality(98)/dehn.es/store/f/57084292/HDVORSCHAU/795041_2.jpg)
:quality(98)/dehn.es/store/f/57084292/HDVORSCHAU/795041_2.jpg)
N.º art. VL2FG28 KS SQ C NS VL2FG28
GTIN 4013364450820, N.º de arancel aduanero (EU): 85359000, Peso bruto: 6.18 kg, Empaquetado: 1.00 pc(s)
:quality(98)/dehn.es/store/f/57084299/HDVORSCHAU/795138mb_D.jpg)
:quality(98)/dehn.es/store/f/57084299/HDVORSCHAU/795138mb_D.jpg)
:quality(98)/dehn.es/store/f/57084300/HDVORSCHAU/795138az.jpg)
:quality(98)/dehn.es/store/f/57084300/HDVORSCHAU/795138az.jpg)
Datos técnicos
| Application | LV |
| Coupling mechanism | SQ |
| Position of the coupling mechanism (IH ) | 175 mm |
| Total length (lG ) | 500 mm |
| Bar spacing (SA ) | 150 mm |
| Max. short-circuit current Ik 0.5 s | 130 kA |
| Max. short-circuit current Ik 1 s | 90 kA |
| Note: When ordering please specify the relevant Variant No. | |
N.º art. VHNEFQE KS SK C NS VHNEFQE
GTIN 4013364450837, N.º de arancel aduanero (EU): 85359000, Peso bruto: 6.14 kg, Empaquetado: 1.00 pc(s)
:quality(98)/dehn.es/store/f/57084315/HDVORSCHAU/795138mb_D.jpg)
:quality(98)/dehn.es/store/f/57084315/HDVORSCHAU/795138mb_D.jpg)
:quality(98)/dehn.es/store/f/57084316/HDVORSCHAU/795138az.jpg)
:quality(98)/dehn.es/store/f/57084316/HDVORSCHAU/795138az.jpg)
Datos técnicos
| Application | LV |
| Coupling mechanism | SK |
| Position of the coupling mechanism (IH ) | 175 mm |
| Total length (lG ) | 500 mm |
| Bar spacing (SA ) | 150 mm |
| Max. short-circuit current Ik 0.5 s | 130 kA |
| Max. short-circuit current Ik 1 s | 90 kA |
| Note: When ordering please specify the relevant Variant No. | |
N.º art. VV7M6CQ KSX SQ C MS VV7M6CQ
GTIN 4013364461963, N.º de arancel aduanero (EU): 85359000, Peso bruto: 10.00 kg, Empaquetado: 1.00 pc(s)
:quality(98)/dehn.es/store/f/57084318/HDVORSCHAU/795138mb_D.jpg)
:quality(98)/dehn.es/store/f/57084318/HDVORSCHAU/795138mb_D.jpg)
:quality(98)/dehn.es/store/f/57084319/HDVORSCHAU/795138az.jpg)
:quality(98)/dehn.es/store/f/57084319/HDVORSCHAU/795138az.jpg)
Datos técnicos
| Application | MV |
| Coupling mechanism | SQ |
| Position of the coupling mechanism (IH ) | 525 mm |
| Total length (lG ) | 1500 mm |
| Bar spacing (SA ) | 450 mm |
| Max. short-circuit current Ik 0.5 s | 80 kA |
| Max. short-circuit current Ik 1 s | 80 kA |
| Note: When ordering please specify the relevant Variant No. | |
N.º art. V5DHK24 KSX SK C MS V5DHK24
GTIN 4013364461970, N.º de arancel aduanero (EU): 85359000, Peso bruto: 10.00 kg, Empaquetado: 1.00 pc(s)
:quality(98)/dehn.es/store/f/57084321/HDVORSCHAU/795138mb_D.jpg)
:quality(98)/dehn.es/store/f/57084321/HDVORSCHAU/795138mb_D.jpg)
:quality(98)/dehn.es/store/f/57084322/HDVORSCHAU/795138az.jpg)
:quality(98)/dehn.es/store/f/57084322/HDVORSCHAU/795138az.jpg)
Datos técnicos
| Application | MV |
| Coupling mechanism | SK |
| Position of the coupling mechanism (IH ) | 525 mm |
| Total length (lG ) | 1500 mm |
| Bar spacing (SA ) | 450 mm |
| Max. short-circuit current Ik 0.5 s | 80 kA |
| Max. short-circuit current Ik 1 s | 80 kA |
| Note: When ordering please specify the relevant Variant No. | |
N.º art. VNRLBXU KS SQ A NS VNRLBXU
GTIN 4013364450868, N.º de arancel aduanero (EU): 85359000, Peso bruto: 10.00 kg, Empaquetado: 1.00 pc(s)
:quality(98)/dehn.es/store/f/57084326/HDVORSCHAU/795148mb_D.jpg)
:quality(98)/dehn.es/store/f/57084326/HDVORSCHAU/795148mb_D.jpg)
:quality(98)/dehn.es/store/f/57084327/HDVORSCHAU/795142az.jpg)
:quality(98)/dehn.es/store/f/57084327/HDVORSCHAU/795142az.jpg)
Datos técnicos
| Application | LV |
| Coupling mechanism | SQ |
| Position of the coupling mechanism (IH ) | 175 mm |
| Total length (lG ) | 500 mm |
| Bar spacing (SA ) | 150 mm |
| Max. short-circuit current Ik 0.5 s | 90 kA |
| Max. short-circuit current Ik 1 s | 64 kA |
| Important: Please state the unique Variant No. when ordering. Note: Other types can be configured online via the earthing and short-circuiting configurator |
|
N.º art. VP33XYL KS SK A NS VP33XYL
GTIN 4013364450875, N.º de arancel aduanero (EU): 85359000, Peso bruto: 10.00 kg, Empaquetado: 1.00 pc(s)
:quality(98)/dehn.es/store/f/57084329/HDVORSCHAU/795148mb_D.jpg)
:quality(98)/dehn.es/store/f/57084329/HDVORSCHAU/795148mb_D.jpg)
:quality(98)/dehn.es/store/f/57084330/HDVORSCHAU/795142az.jpg)
:quality(98)/dehn.es/store/f/57084330/HDVORSCHAU/795142az.jpg)
Datos técnicos
| Application | LV |
| Coupling mechanism | SK |
| Position of the coupling mechanism (IH ) | 175 mm |
| Total length (lG ) | 500 mm |
| Bar spacing (SA ) | 150 mm |
| Max. short-circuit current Ik 0.5 s | 90 kA |
| Max. short-circuit current Ik 1 s | 64 kA |
| Important: Please state the unique Variant No. when ordering. Note: Other types can be configured online via the earthing and short-circuiting configurator |
|
N.º art. VSJ3Y6N KSX SQ A MS VSJ3Y6N
GTIN 4013364461994, N.º de arancel aduanero (EU): 85359000, Peso bruto: 10.00 kg, Empaquetado: 1.00 pc(s)
:quality(98)/dehn.es/store/f/57084332/HDVORSCHAU/795148mb_D.jpg)
:quality(98)/dehn.es/store/f/57084332/HDVORSCHAU/795148mb_D.jpg)
:quality(98)/dehn.es/store/f/57084333/HDVORSCHAU/795142az.jpg)
:quality(98)/dehn.es/store/f/57084333/HDVORSCHAU/795142az.jpg)
Datos técnicos
| Application | MV |
| Coupling mechanism | SQ |
| Position of the coupling mechanism (IH ) | 675 mm |
| Total length (lG ) | 1500 mm |
| Bar spacing (SA ) | 450 mm |
| Max. short-circuit current Ik 0.5 s | 60 kA |
| Max. short-circuit current Ik 1 s | 60 kA |
| Important: Please state the unique Variant No. when ordering. Note: Other types can be configured online via the earthing and short-circuiting configurator |
|
N.º art. VANH53Y KSX SK A MS VANH53Y
GTIN 4013364461987, N.º de arancel aduanero (EU): 85359000, Peso bruto: 10.00 kg, Empaquetado: 1.00 pc(s)
:quality(98)/dehn.es/store/f/57084335/HDVORSCHAU/795148mb_D.jpg)
:quality(98)/dehn.es/store/f/57084335/HDVORSCHAU/795148mb_D.jpg)
:quality(98)/dehn.es/store/f/57084336/HDVORSCHAU/795142az.jpg)
:quality(98)/dehn.es/store/f/57084336/HDVORSCHAU/795142az.jpg)
Datos técnicos
| Application | MV |
| Coupling mechanism | SK |
| Position of the coupling mechanism (IH ) | 675 mm |
| Total length (lG ) | 1500 mm |
| Bar spacing (SA ) | 450 mm |
| Max. short-circuit current Ik 0.5 s | 60 kA |
| Max. short-circuit current Ik 1 s | 60 kA |
| Important: Please state the unique Variant No. when ordering. Note: Other types can be configured online via the earthing and short-circuiting configurator |
|
