Fixed Earthing Points

For connecting earth bushings or earth connecting plates in accordance with DIN 48088-2
Welding-type or bolted-type connector for connecting earth connectors with wing nut or wing bolt on the earth cable end
Connectors with M12 or M16 threaded pin
M12 or M16 female thread

Detalles

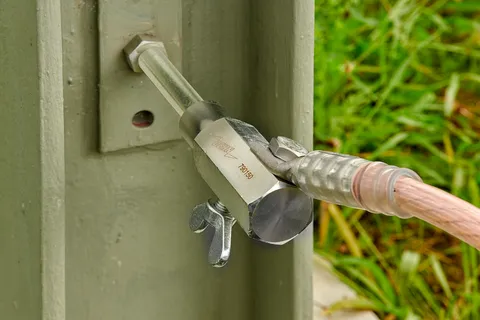

Bolted-type earth connector with M12 threaded pin on an earthed part of an installation.

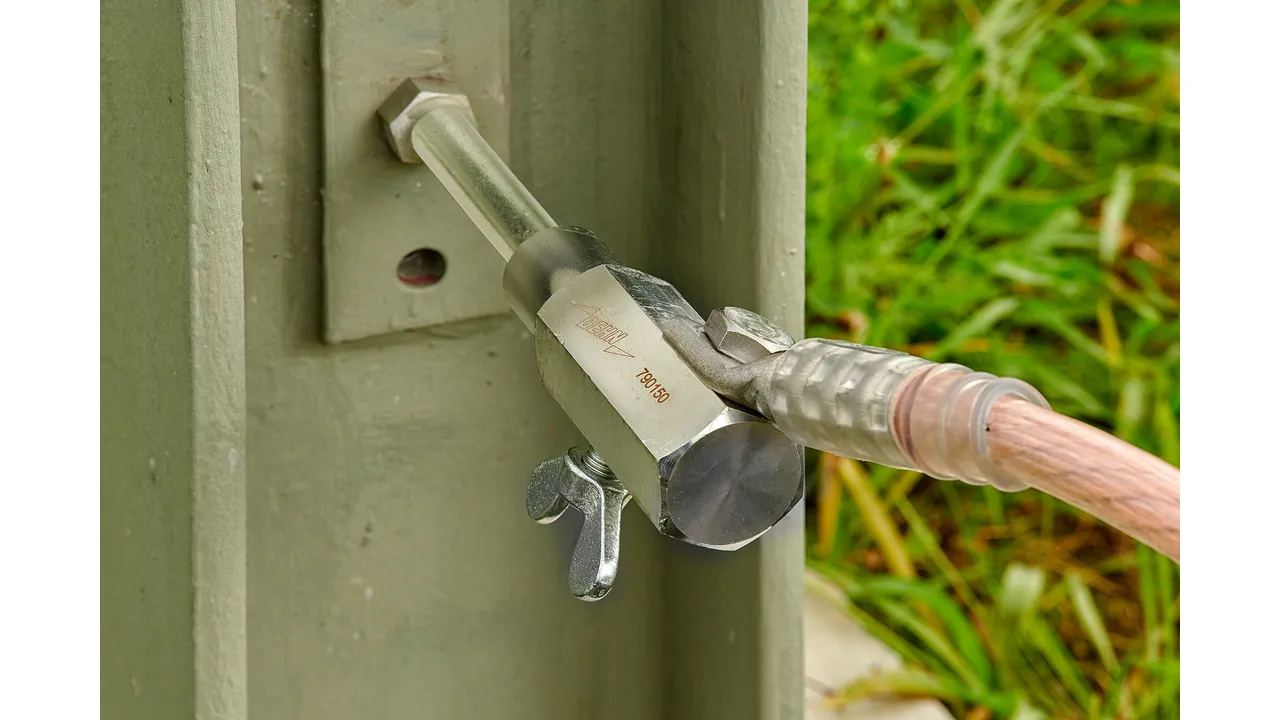

lorem ipsum — Bolted-type earth connector with M12 threaded pin on an earthed part of an installation.

Ring Groove Fixed Point with Threaded Pin and Nut

2 Productos

N.º art. 790251 EFP 16 RN M12 35 SSM

GTIN 4013364089501, N.º de arancel aduanero (EU): 85359000, Peso bruto: 248.00 g, Empaquetado: 1.00 pc(s)

Figuras

Open PDF

Más información

Datos técnicos

Dimensions	M12 x 35 mm
Diameter	16 mm
Wrench size	22 mm
Max. cable cross-section Cu	150 mm²
Max. short-circuit current I_k0.5 s	42.0^*) kA
Max. short-circuit current I_k1 s	29.6^*) kA
Material	Brass (CuNi2Si) / gal Sn
Material (threaded pin)	StSt A2-70
Material (nut)	DIN 985-M12-8 / gal Zn
^*)For earthing and short-circuiting devices with cable lengths > 4000 mm: 26.5 kA / 0.5 s (18.7 kA / 1 s)

Dimensions	M12 x 35 mm
Diameter	16 mm
Wrench size	22 mm
Max. cable cross-section Cu	150 mm²
Max. short-circuit current I_k0.5 s	42.0^*) kA
Max. short-circuit current I_k1 s	29.6^*) kA
Standard	EN/IEC 61230 (DIN VDE 0683-100) and DIN 48088-2
Material	Brass (CuNi2Si) / gal Sn
Material (threaded pin)	StSt A2-70
Material (nut)	DIN 985-M12-8 / gal Zn
Tightening torque	50 ... 65 Nm
^*)For earthing and short-circuiting devices with cable lengths > 4000 mm: 26.5 kA / 0.5 s (18.7 kA / 1 s)

Se ha añadido el artículo 790251 a favoritos.

Ir a favoritos

El artículo 790251 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 790261 EFP 16 RN M16 45 SSM

GTIN 4013364089525, N.º de arancel aduanero (EU): 85359000, Peso bruto: 277.00 g, Empaquetado: 1.00 pc(s)

Figuras

Open PDF

Más información

Datos técnicos

Dimensions	M16 x 45 mm
Diameter	16 mm
Wrench size	22 mm
Max. cable cross-section Cu	150 mm²
Max. short-circuit current I_k0.5 s	42.0^*) kA
Max. short-circuit current I_k1 s	29.6^*) kA
Material	Brass (CuNi2Si) / gal Sn
Material (threaded pin)	StSt A2-70
Material (nut)	DIN 985-M16-8 / gal Zn
^*)For earthing and short-circuiting devices with cable lengths > 4000 mm: 26.5 kA / 0.5 s (18.7 kA / 1 s)

Dimensions	M16 x 45 mm
Diameter	16 mm
Wrench size	22 mm
Max. cable cross-section Cu	150 mm²
Max. short-circuit current I_k0.5 s	42.0^*) kA
Max. short-circuit current I_k1 s	29.6^*) kA
Standard	EN/IEC 61230 (DIN VDE 0683-100) and DIN 48088-2
Material	Brass (CuNi2Si) / gal Sn
Material (threaded pin)	StSt A2-70
Material (nut)	DIN 985-M16-8 / gal Zn
Tightening torque	100 ... 110 Nm
^*)For earthing and short-circuiting devices with cable lengths > 4000 mm: 26.5 kA / 0.5 s (18.7 kA / 1 s)

Se ha añadido el artículo 790261 a favoritos.

Ir a favoritos

El artículo 790261 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

Ring Groove Fixed Point with Female Thread

2 Productos

N.º art. 790250 EFP 16 RN M12

GTIN 4013364089495, N.º de arancel aduanero (EU): 85359000, Peso bruto: 193.00 g, Empaquetado: 1.00 pc(s)

Figuras

Open PDF

Más información

Datos técnicos

Dimensions	M12
Diameter	16 mm
Wrench size	22 mm
Max. cable cross-section Cu	150 mm²
Max. short-circuit current I_k0.5 s	42.0^*) kA
Max. short-circuit current I_k1 s	29.6^*) kA
Material	Brass (CuNi2Si) / gal Sn
^*)For earthing and short-circuiting devices with cable lengths > 4000 mm: 26.5 kA / 0.5 s (18.7 kA / 1 s)

Dimensions	M12
Diameter	16 mm
Wrench size	22 mm
Max. cable cross-section Cu	150 mm²
Max. short-circuit current I_k0.5 s	42.0^*) kA
Max. short-circuit current I_k1 s	29.6^*) kA
Standard	EN/IEC 61230 (DIN VDE 0683-100) and DIN 48088-2
Material	Brass (CuNi2Si) / gal Sn
^*)For earthing and short-circuiting devices with cable lengths > 4000 mm: 26.5 kA / 0.5 s (18.7 kA / 1 s)

Se ha añadido el artículo 790250 a favoritos.

Ir a favoritos

El artículo 790250 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 790260 EFP 16 RN M16

GTIN 4013364089518, N.º de arancel aduanero (EU): 85359000, Peso bruto: 180.00 g, Empaquetado: 1.00 pc(s)

Figuras

Open PDF

Más información

Datos técnicos

Dimensions	M16
Diameter	16 mm
Wrench size	22 mm
Max. cable cross-section Cu	150 mm²
Max. short-circuit current I_k0.5 s	42.0^*) kA
Max. short-circuit current I_k1 s	29.6^*) kA
Material	Brass (CuNi2Si) / gal Sn
^*)For earthing and short-circuiting devices with cable lengths > 4000 mm: 26.5 kA / 0.5 s (18.7 kA / 1 s)

Dimensions	M16
Diameter	16 mm
Wrench size	22 mm
Max. cable cross-section Cu	150 mm²
Max. short-circuit current I_k0.5 s	42.0^*) kA
Max. short-circuit current I_k1 s	29.6^*) kA
Standard	EN/IEC 61230 (DIN VDE 0683-100) and DIN 48088-2
Material	Brass (CuNi2Si) / gal Sn
^*)For earthing and short-circuiting devices with cable lengths > 4000 mm: 26.5 kA / 0.5 s (18.7 kA / 1 s)
