N.º art. 900780 SPD+POP 2 255 C25

GTIN 4013364156203, N.º de arancel aduanero (EU): 85363030, Peso bruto: 404.00 g, Empaquetado: 1.00 pc(s)

Figuras

Más información

Archivos CAD

Surge arrester SPD+POP 2 255 C25
Compact surge arrester for transients and
mains-frequency surges with integrated
miniature circuit breaker
Type 2 SPD according to EN 61643-11,
POP according to EN 50550
Comprehensive protection against transients and
mains-frequency surges
Prewired complete unit, the individual devices
do not have to be additionally wired
Number of poles 1P + N
Tripping characteristic MCB / nominal current MCB C 25 A
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 5 kA / 20 kA
Energy coordination according to
EN 62305-4 with type 1 and
type 3 arresters of the Red/Line series
SPD monitoring: Thermo Dynamic Control
Operating state and fault indication
DIN rail mounted device according to DIN 43880, 4 modules

Brand: DEHN
Type: SPD+POP 2 255 C25
Part No.: 900780
or equivalent.

Certificados

Datos técnicos

General
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
SPD
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	25 A

General
Power supply system	single-phase TT / TN system
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25 °C ... +60 °C
Cross-sectional area (L, N) (min.)	2.5 mm²solid / flexible
Cross-sectional area (L, N) (max.)	16 mm²flexible / 25 mm² stranded
Cross-sectional area (PE) (min.)	0.75 mm²solid / flexible
Cross-sectional area (PE) (max.)	6 mm² flexible / 10 mm²solid
Degree of protection protection	IP 20
Capacity	4 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
SPD
SPD according to EN 61643-11 / ... IEC 61643-1/-11	type 2
SPD according to IEC 61643-11	class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V
Follow current extinguishing capability [N-PE] (I_fi )	100 A
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	15 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Protective conductor current (I_PE )	≤ 5 µA
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	MCB C 63 A
Short-circuit withstand capability (I_SCCR )	6 kA
Temporary overvoltage (TOV) L-N (U_T )	335 V / 5 s
Temporary overvoltage (TOV) [N-PE] (U_T )	1200 V / 200 ms
TOV characteristic	withstand
Operating state / fault indication	green / red
Number of ports	1
Enclosure material	thermoplastic, grey, UL 94 V-0
Place of installation	indoor installation
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	25 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Se ha añadido el artículo 900780 a favoritos.

Ir a favoritos

El artículo 900780 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 900781 SPD+POP 2 255 C32

GTIN 4013364156210, N.º de arancel aduanero (EU): 85363030, Peso bruto: 425.00 g, Empaquetado: 1.00 pc(s)

Figuras

Más información

Archivos CAD

Surge arrester SPD+POP 2 255 C32
Compact surge arrester for transients and mains-frequency
surges with integrated miniature circuit breaker
Type 2 SPD according to EN 61643-11, POP according to EN 50550
Comprehensive protection against transients and
mains-frequency surges
Prewired complete unit, the individual devices do not
have to be additionally wired
Number of poles 1P + N
Tripping characteristic MCB / nominal current MCB C 32 A
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 5 kA / 20 kA
Energy coordination according to
EN 62305-4 with type 1 and
type 3 arresters of the Red/Line series
SPD monitoring: Thermo Dynamic Control
Operating state and fault indication
DIN rail mounted device according to DIN 43880, 4 modules

Brand: DEHN
Type: SPD+POP 2 255 C32
Part No.: 900781
or equivalent.

Certificados

Datos técnicos

General
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
SPD
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	32 A

General
Power supply system	single-phase TT / TN system
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25 °C ... +60 °C
Cross-sectional area (L, N) (min.)	2.5 mm² solid / flexible
Cross-sectional area (L, N) (max.)	16 mm² flexible / 25 mm² stranded
Cross-sectional area (PE) (min.)	0.75 mm² solid / flexible
Cross-sectional area (PE) (max.)	6 mm² flexible / 10 mm² solid
Degree of protection protection	IP 20
Capacity	4 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
SPD
SPD according to EN 61643-11 / ... IEC 61643-1/-11	type 2
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V
Follow current extinguishing capability [N-PE] (I_fi )	100 A
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	15 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Protective conductor current (I_PE )	≤ 5 µA
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	MCB C 63 A
Short-circuit withstand capability (I_SCCR )	6 kA
Temporary overvoltage (TOV) L-N (U_T )	335 V / 5 s
Temporary overvoltage (TOV) [N-PE] (U_T )	1200 V / 200 ms
TOV characteristic	withstand
Operating state / fault indication	green / red
Number of ports	1
Enclosure material	thermoplastic, grey, UL 94 V-0
Place of installation	indoor installation
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	32 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Se ha añadido el artículo 900781 a favoritos.

Ir a favoritos

El artículo 900781 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 900782 SPD+POP 2 255 C40

GTIN 4013364156227, N.º de arancel aduanero (EU): 85363030, Peso bruto: 424.00 g, Empaquetado: 1.00 pc(s)

Figuras

Más información

Archivos CAD

Surge arrester SPD+POP 2 255 C40
Compact surge arrester for transients and mains-frequency
surges with integrated miniature circuit breaker
Type 2 SPD according to EN 61643-11, POP according to EN 50550
Comprehensive protection against transients and
mains-frequency surges
Prewired complete unit, the individual devices do not have to
be additionally wired
Number of poles 1P + N
Tripping characteristic MCB / nominal current MCB C 40 A
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 5 kA / 20 kA
Energy coordination according to
EN 62305-4 with type 1 and
type 3 arresters of the Red/Line series
SPD monitoring: Thermo Dynamic Control
Operating state and fault indication
DIN rail mounted device according to DIN 43880, 4 modules

Brand: DEHN
Type: SPD+POP 2 255 C40
Part No.: 900782
or equivalent.

Certificados

Datos técnicos

General
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
SPD
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	40 A

General
Power supply system	single-phase TT / TN system
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25 °C ... +60 °C
Cross-sectional area (L, N) (min.)	2.5 mm² solid / flexible
Cross-sectional area (L, N) (max.)	16 mm² flexible / 25 mm² stranded
Cross-sectional area (PE) (min.)	0.75 mm² solid / flexible
Cross-sectional area (PE) (max.)	6 mm² flexible / 10 mm² solid
Degree of protection protection	IP 20
Capacity	4 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
SPD
SPD according to EN 61643-11 / ... IEC 61643-1/-11	type 2
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V
Follow current extinguishing capability [N-PE] (I_fi )	100 A
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	15 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Protective conductor current (I_PE )	≤ 5 µA
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	MCB C 63 A
Short-circuit withstand capability (I_SCCR )	6 kA
Temporary overvoltage (TOV) L-N (U_T )	335 V / 5 s
Temporary overvoltage (TOV) [N-PE] (U_T )	1200 V / 200 ms
TOV characteristic	withstand
Operating state / fault indication	green / red
Number of ports	1
Enclosure material	thermoplastic, grey, UL 94 V-0
Place of installation	indoor installation
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	40 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Se ha añadido el artículo 900782 a favoritos.

Ir a favoritos

El artículo 900782 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 900785 SPD+POP 4 255 C25

GTIN 4013364156234, N.º de arancel aduanero (EU): 85363030, Peso bruto: 730.00 g, Empaquetado: 1.00 pc(s)

Figuras

Más información

Archivos CAD

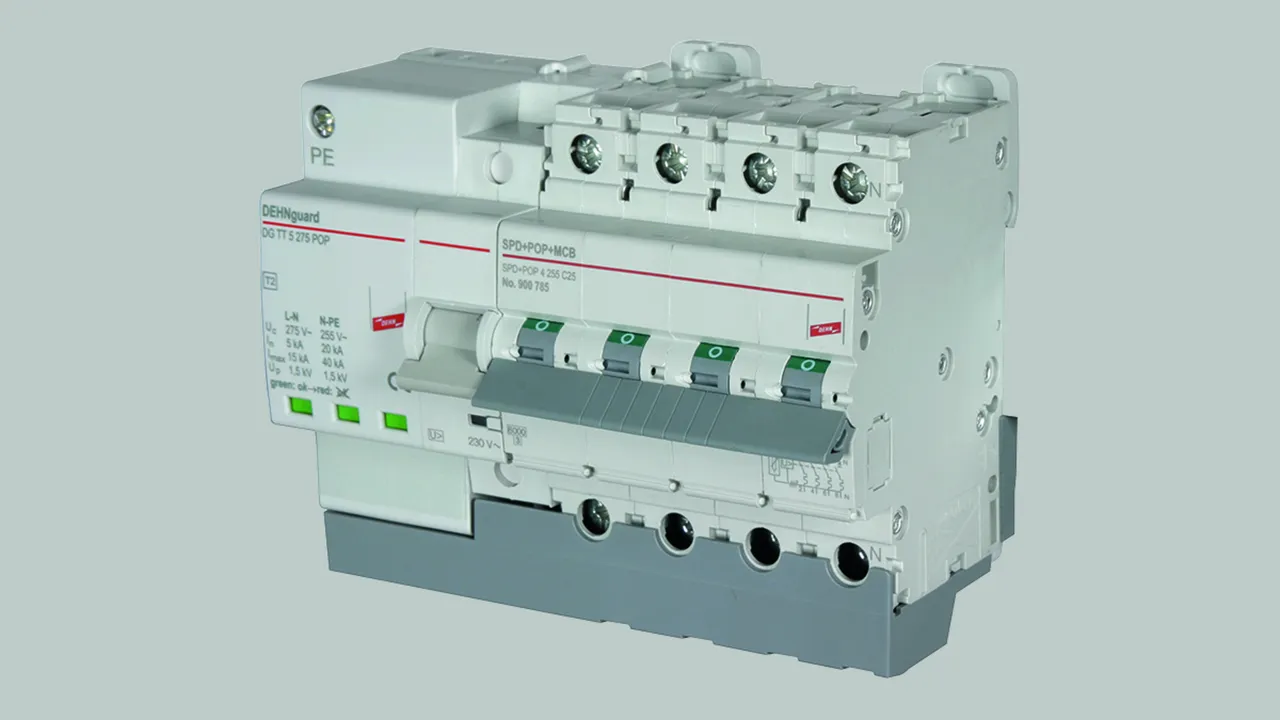

Surge arrester SPD+POP 4 255 C25
Compact surge arrester for transients and mains-frequency surges with integrated miniature circuit breaker
Type 2 SPD according to EN 61643-11, POP according to EN 50550
Comprehensive protection against transients and mains-frequency surges
Prewired complete unit, the individual devices do not have to be additionally wired
Number of poles 3P + N
Tripping characteristic MCB / nominal current MCB C 25 A
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 5 kA / 20 kA
Energy coordination according to
EN 62305-4 with type 1 and
type 3 arresters of the Red/Line series
SPD monitoring: Thermo Dynamic Control
Operating state and fault indication
DIN rail mounted device according to DIN 43880, 7 modules

Brand: DEHN
Type: SPD+POP 4 255 C25
Part No.: 900785
or equivalent.

Certificados

Datos técnicos

General
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
SPD
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	25 A

General
Power supply system	three-phase TT / TN system
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25 °C ... +60 °C
Cross-sectional area (L1, L2, L3, N) (min.)	2.5 mm² solid / flexible
Cross-sectional area (L1, L2, L3, N) (max.)	16 mm² flexible / 25 mm² stranded
Cross-sectional area (PE) (min.)	0.75 mm² solid / flexible
Cross-sectional area (PE) (max.)	6 mm²flexible / 10 mm² solid
Degree of protection protection	IP 20
Capacity	7 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
SPD
SPD according to EN 61643-11 / ... IEC 61643-1/-11	type 2
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V
Follow current extinguishing capability [N-PE] (I_fi )	100 A
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	15 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Protective conductor current (I_PE )	≤ 5 µA
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	MCB C 63 A
Short-circuit withstand capability (I_SCCR )	6 kA
Temporary overvoltage (TOV) L-N (U_T )	335 V / 5 s
Temporary overvoltage (TOV) [N-PE] (U_T )	1200 V / 200 ms
TOV characteristic	withstand
Operating state / fault indication	green / red
Number of ports	1
Enclosure material	thermoplastic, grey, UL 94 V-0
Place of installation	indoor installation
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	25 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Se ha añadido el artículo 900785 a favoritos.

Ir a favoritos

El artículo 900785 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 900786 SPD+POP 4 255 C32

GTIN 4013364156241, N.º de arancel aduanero (EU): 85363030, Peso bruto: 763.00 g, Empaquetado: 1.00 pc(s)

Figuras

Más información

Archivos CAD

Surge arrester SPD+POP 4 255 C32
Compact surge arrester for transients and mains-frequency surges with integrated miniature circuit breaker
Type 2 SPD according to EN 61643-11, POP according to EN 50550
Comprehensive protection against transients and mains-frequency surges
Prewired complete unit, the individual devices do not have to be additionally wired
Number of poles 3P + N
Tripping characteristic MCB / nominal current MCB C 32 A
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 5 kA / 20 kA
Energy coordination according to
EN 62305-4 with type 1 and
type 3 arresters of the Red/Line series
SPD monitoring: Thermo Dynamic Control
Operating state and fault indication
DIN rail mounted device according to DIN 43880, 7 modules

Brand: DEHN
Type: SPD+POP 4 255 C32
Part No.: 900786
or equivalent.

Certificados

Datos técnicos

General
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
SPD
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	32 A

General
Power supply system	three-phase TT / TN system
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25 °C ... +60 °C
Cross-sectional area (L1, L2, L3, N) (min.)	2.5 mm² solid / flexible
Cross-sectional area (L1, L2, L3, N) (max.)	16 mm² flexible / 25 mm² stranded
Cross-sectional area (PE) (min.)	0.75 mm² solid / flexible
Cross-sectional area (PE) (max.)	6 mm² flexible / 10 mm² solid
Degree of protection protection	IP 20
Capacity	7 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
SPD
SPD according to EN 61643-11 / ... IEC 61643-1/-11	type 2
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V
Follow current extinguishing capability [N-PE] (I_fi )	100 A
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	15 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Protective conductor current (I_PE )	≤ 5 µA
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	MCB C 63 A
Short-circuit withstand capability (I_SCCR )	6 kA
Temporary overvoltage (TOV) L-N (U_T )	335 V / 5 s
Temporary overvoltage (TOV) [N-PE] (U_T )	1200 V / 200 ms
TOV characteristic	withstand
Operating state / fault indication	green / red
Number of ports	1
Enclosure material	thermoplastic, grey, UL 94 V-0
Place of installation	indoor installation
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	32 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Se ha añadido el artículo 900786 a favoritos.

Ir a favoritos

El artículo 900786 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 900787 SPD+POP 4 255 C40

GTIN 4013364156258, N.º de arancel aduanero (EU): 85363030, Peso bruto: 769.00 g, Empaquetado: 1.00 pc(s)

Figuras

Más información

Archivos CAD

Surge arrester SPD+POP 4 255 C40
Compact surge arrester for transients and mains-frequency surges with integrated miniature circuit breaker
Type 2 SPD according to EN 61643-11, POP according to EN 50550
Comprehensive protection against transients and mains-frequency surges
Prewired complete unit, the individual devices do not have to be additionally wired
Number of poles 3P + N
Tripping characteristic MCB / nominal current MCB C 40 A
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 5 kA / 20 kA
Energy coordination according to
EN 62305-4 with type 1 and
type 3 arresters of the Red/Line series
SPD monitoring: Thermo Dynamic Control
Operating state and fault indication
DIN rail mounted device according to DIN 43880, 7 modules

Brand: DEHN
Type: SPD+POP 4 255 C40
Part No.: 900787
or equivalent.

Certificados

Datos técnicos

General
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
SPD
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	40 A

General
Power supply system	three-phase TT / TN system
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25 °C ... +60 °C
Cross-sectional area (L1, L2, L3, N) (min.)	2.5 mm² solid / flexible
Cross-sectional area (L1, L2, L3, N) (max.)	16 mm² flexible / 25 mm²stranded
Cross-sectional area (PE) (min.)	0.75 mm² solid / flexible
Cross-sectional area (PE) (max.)	6 mm² flexible / 10 mm² solid
Degree of protection protection	IP 20
Capacity	7 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
SPD
SPD according to EN 61643-11 / ... IEC 61643-1/-11	type 2
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V
Follow current extinguishing capability [N-PE] (I_fi )	100 A
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	15 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Protective conductor current (I_PE )	≤ 5 µA
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	MCB C 63 A
Short-circuit withstand capability (I_SCCR )	6 kA
Temporary overvoltage (TOV) L-N (U_T )	335 V / 5 s
Temporary overvoltage (TOV) [N-PE] (U_T )	1200 V / 200 ms
TOV characteristic	withstand
Operating state / fault indication	green / red
Number of ports	1
Enclosure material	thermoplastic, grey, UL 94 V-0
Place of installation	indoor installation
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	40 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Se ha añadido el artículo 900787 a favoritos.

Ir a favoritos

El artículo 900787 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 900788 SPD+POP 4 255 C63

GTIN 4013364156265, N.º de arancel aduanero (EU): 85363030, Peso bruto: 773.00 g, Empaquetado: 1.00 pc(s)

Figuras

Más información

Archivos CAD

Surge arrester SPD+POP 4 255 C63
Compact surge arrester for transients and mains-frequency surges with integrated miniature circuit breaker
Type 2 SPD according to EN 61643-11, POP according to EN 50550
Comprehensive protection against transients and mains-frequency surges
Prewired complete unit, the individual devices do not have to be additionally wired
Number of poles 3P + N
Tripping characteristic MCB / nominal current MCB C 63 A
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 5 kA / 20 kA
Energy coordination according to
EN 62305-4 with type 1 and
type 3 arresters of the Red/Line series
SPD monitoring: Thermo Dynamic Control
Operating state and fault indication
DIN rail mounted device according to DIN 43880, 7 modules

Brand: DEHN
Type: SPD+POP 4 255 C63
Part No.: 900788
or equivalent.

Certificados

Datos técnicos

General
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
SPD
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	63 A

General
Power supply system	three-phase TT / TN system
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25 °C ... +60 °C
Cross-sectional area (L1, L2, L3, N) (min.)	2.5 mm² solid / flexible
Cross-sectional area (L1, L2, L3, N) (max.)	16 mm² flexible / 25 mm² stranded
Cross-sectional area (PE) (min.)	0.75 mm² solid / flexible
Cross-sectional area (PE) (max.)	6 mm² flexible / 10 mm² solid
Degree of protection protection	IP 20
Capacity	7 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
SPD
SPD according to EN 61643-11 / ... IEC 61643-1/-11	type 2
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V
Follow current extinguishing capability [N-PE] (I_fi )	100 A
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	15 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Protective conductor current (I_PE )	≤ 5 µA
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	MCB C 63 A
Short-circuit withstand capability (I_SCCR )	6 kA
Temporary overvoltage (TOV) L-N (U_T )	335 V / 5 s
Temporary overvoltage (TOV) [N-PE] (U_T )	1200 V / 200 ms
TOV characteristic	withstand
Operating state / fault indication	green / red
Number of ports	1
Enclosure material	thermoplastic, grey, UL 94 V-0
Place of installation	indoor installation
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	63 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Se ha añadido el artículo 900788 a favoritos.

Ir a favoritos

El artículo 900788 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 900760 POP 2 255 C25

GTIN 4013364156135, N.º de arancel aduanero (EU): 85363030, Peso bruto: 297.00 g, Empaquetado: 1.00 pc(s)

Figuras

Más información

Archivos CAD

Protective device POP 2 255 C25
Protective device for mains-frequency surges with integrated miniature circuit breaker
POP according to EN 50550
Prewired complete unit, individual devices do not have to be additionally wired
Number pf poles 1P + N
Tripping characteristic MCB / nominal current MCB C 25 A
Rated breaking capacity according to EN 60898 6 kA
DIN rail mounted device according to DIN 43880, 3 modules

Brand: DEHN
Type: POP 2 255 C25
Part No.: 900760
or equivalent.

Certificados

Datos técnicos

General
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	25 A

General
Power supply system	single-phase TT / TN system
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25°C to +60°C
Cross-sectional area (L, N) (min.)	2.5 mm²solid / fine-stranded
Cross-sectional area (L, N) (max.)	16 mm²fine-stranded / 25 mm²solid
Degree of protection protection	IP 20
Capacity	3 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	25 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Se ha añadido el artículo 900760 a favoritos.

Ir a favoritos

El artículo 900760 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 900761 POP 2 255 C32

GTIN 4013364156142, N.º de arancel aduanero (EU): 85363030, Peso bruto: 317.00 g, Empaquetado: 1.00 pc(s)

Figuras

Más información

Archivos CAD

Protective device POP 2 255 C32
Protective device for mains-frequency surges with integrated miniature circuit breaker
POP according to EN 50550
Prewired complete unit, individual devices do not have to be additionally wired
Number pf poles 1P + N
Tripping characteristic MCB / nominal current MCB C 32 A
Rated breaking capacity according to EN 60898 6 kA
DIN rail mounted device according to DIN 43880, 3 modules

Brand: DEHN
Type: POP 2 255 C32
Part No.: 900761
or equivalent.

Certificados

Datos técnicos

General
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	32 A

General
Power supply system	single-phase TT / TN system
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25°C to +60°C
Cross-sectional area (L, N) (min.)	2.5 mm²solid / fine-stranded
Cross-sectional area (L, N) (max.)	16 mm²fine-stranded / 25 mm²solid
Degree of protection protection	IP 20
Capacity	3 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	32 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Se ha añadido el artículo 900761 a favoritos.

Ir a favoritos

El artículo 900761 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 900762 POP 2 255 C40

GTIN 4013364156159, N.º de arancel aduanero (EU): 85363030, Peso bruto: 317.00 g, Empaquetado: 1.00 pc(s)

Figuras

Más información

Archivos CAD

Protective device POP 2 255 C40
Protective device for mains-frequency surges with integrated miniature circuit breaker
POP according to EN 50550
Prewired complete unit, individual devices do not have to be additionally wired
Number pf poles 1P + N
Tripping characteristic MCB / nominal current MCB C 40 A
Rated breaking capacity according to EN 60898 6 kA
DIN rail mounted device according to DIN 43880, 3 modules

Brand: DEHN
Type: POP 2 255 C40
Part No.: 900762
or equivalent.

Certificados

Datos técnicos

General
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	40 A

General
Power supply system	single-phase TT / TN system
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25°C to +60°C
Cross-sectional area (L, N) (min.)	2.5 mm²solid / fine-stranded
Cross-sectional area (L, N) (max.)	16 mm²fine-stranded / 25 mm²solid
Degree of protection protection	IP 20
Capacity	3 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	40 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Se ha añadido el artículo 900762 a favoritos.

Ir a favoritos

El artículo 900762 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 900765 POP 4 255 C25

GTIN 4013364156166, N.º de arancel aduanero (EU): 85363030, Peso bruto: 547.00 g, Empaquetado: 1.00 pc(s)

Figuras

Más información

Archivos CAD

Protective device POP 4 255 C25
Protective device for mains-frequency surges with integrated miniature circuit breaker
POP according to EN 50550
Prewired complete unit, individual devices do not have to be additionally wired
Number pf poles 3P + N
Tripping characteristic MCB / nominal current MCB C 25 A
Rated breaking capacity according to EN 60898 6 kA
DIN rail mounted device according to DIN 43880, 5 modules

Brand: DEHN
Type: POP 4 255 C25
Part No.: 900765
or equivalent.

Certificados

Datos técnicos

General
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	25 A

General
Power supply system	three-phase TT / TN system
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25°C to +60°C
Cross-sectional area (L1, L2, L3, N) (min.)	2.5 mm²solid / fine-stranded
Cross-sectional area (L1, L2, L3, N) (max.)	16 mm²fine-stranded / 25 mm²solid
Degree of protection protection	IP 20
Capacity	5 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	25 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Se ha añadido el artículo 900765 a favoritos.

Ir a favoritos

El artículo 900765 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 900766 POP 4 255 C32

GTIN 4013364156173, N.º de arancel aduanero (EU): 85363030, Peso bruto: 580.00 g, Empaquetado: 1.00 pc(s)

Figuras

Más información

Archivos CAD

Protective device POP 4 255 C32
Protective device for mains-frequency surges with integrated miniature circuit breaker
POP according to EN 50550
Prewired complete unit, individual devices do not have to be additionally wired
Number pf poles 3P + N
Tripping characteristic MCB / nominal current MCB C 32 A
Rated breaking capacity according to EN 60898 6 kA
DIN rail mounted device according to DIN 43880, 5 modules

Brand: DEHN
Type: POP 4 255 C32
Part No.: 900766
or equivalent.

Certificados

Datos técnicos

General
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	32 A

General
Power supply system	three-phase TT / TN system
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25°C to +60°C
Cross-sectional area (L1, L2, L3, N) (min.)	2.5 mm²solid / fine-stranded
Cross-sectional area (L1, L2, L3, N) (max.)	2.5 mm²solid / fine-stranded
Degree of protection protection	IP 20
Capacity	5 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	32 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Se ha añadido el artículo 900766 a favoritos.

Ir a favoritos

El artículo 900766 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 900767 POP 4 255 C40

GTIN 4013364156180, N.º de arancel aduanero (EU): 85363030, Peso bruto: 586.00 g, Empaquetado: 1.00 pc(s)

Figuras

Más información

Archivos CAD

Protective device POP 4 255 C40
Protective device for mains-frequency surges with integrated miniature circuit breaker
POP according to EN 50550
Prewired complete unit, individual devices do not have to be additionally wired
Number pf poles 3P + N
Tripping characteristic MCB / nominal current MCB C 40 A
Rated breaking capacity according to EN 60898 6 kA
DIN rail mounted device according to DIN 43880, 5 modules

Brand: DEHN
Type: POP 4 255 C40
Part No.: 900767
or equivalent.

Certificados

Datos técnicos

General
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	40 A

General
Power supply system	three-phase TT / TN system
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25°C to +60°C
Cross-sectional area (L1, L2, L3, N) (min.)	2.5 mm²solid / fine-stranded
Cross-sectional area (L1, L2, L3, N) (max.)	2.5 mm²solid / fine-stranded
Degree of protection protection	IP 20
Capacity	5 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	40 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Se ha añadido el artículo 900767 a favoritos.

Ir a favoritos

El artículo 900767 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 900768 POP 4 255 C63

GTIN 4013364156197, N.º de arancel aduanero (EU): 85363030, Peso bruto: 591.00 g, Empaquetado: 1.00 pc(s)

Figuras

Más información

Archivos CAD

Protective device POP 4 255 C63
Protective device for mains-frequency surges with integrated miniature circuit breaker
POP according to EN 50550
Prewired complete unit, individual devices do not have to be additionally wired
Number pf poles 3P + N
Tripping characteristic MCB / nominal current MCB C 63 A
Rated breaking capacity according to EN 60898 6 kA
DIN rail mounted device according to DIN 43880, 5 modules

Brand: DEHN
Type: POP 4 255 C63
Part No.: 900768
or equivalent.

Certificados

Datos técnicos

General
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	63 A

General
Power supply system	three-phase TT / TN system
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25°C to +60°C
Cross-sectional area (L1, L2, L3, N) (min.)	2.5 mm²solid / fine-stranded
Cross-sectional area (L1, L2, L3, N) (max.)	2.5 mm²solid / fine-stranded
Degree of protection protection	IP 20
Capacity	5 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	63 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Se ha añadido el artículo 900768 a favoritos.

Ir a favoritos

El artículo 900768 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 900720 POP SA 3P 230

GTIN 4013364477377, N.º de arancel aduanero (EU): 85363030, Peso bruto: 141.37 g, Empaquetado: 1.00 pc(s)

Figuras

Open PDF

Más información

Protective device POP SA 3P 230
Protective device for
power-frequency overvoltages
for the triggering of external
circuit breakers
POP as per IEC 63052 cat. 4.1.3S2
Number pf poles 3P + N
Adjustable output switching signal
from 12V – 230V
DIN rail mounted device according to
DIN 43880, 2 modules

Brand: DEHN
Type: POP SA 3P 230
Part No.: 900720
or equivalent.

Datos técnicos

Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V

General
Power supply system	three-phase TT / TN system
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-5°C to +45°C
Cross-sectional area (L1, L2, L3, N) (min.)	0.5 mm²solid / flexible
Cross-sectional area (L1, L2, L3, N) (max.)	2.5 mm²flexible / 4 mm²solid
Degree of protection protection	IP 20
Capacity	2 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
Status indication	RGB LED
POP
Tested to	IEC 63052 cat. 4.1.3S2
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	440 V
Tripping time at 400 V a.c.	140 ms

Se ha añadido el artículo 900720 a favoritos.

Ir a favoritos

El artículo 900720 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

SPD+POP+MCB / POP+MCB / POP

Two-pole SPD+POP+MCB

N.º art. 900780 SPD+POP 2 255 C25

Debe estar registrado para descargar 900780.stp.

Debe estar registrado para descargar 900780.igs.

Debe estar registrado para descargar 900780.jt.

Debe estar registrado para descargar 900780.dwg.

Debe estar registrado para descargar 900780m_E.dxf.

Se ha añadido el artículo 900780 a favoritos.

El artículo 900780 ha sido añadido a la cesta de compra.

N.º art. 900781 SPD+POP 2 255 C32

Debe estar registrado para descargar 900781.stp.

Debe estar registrado para descargar 900781.igs.

Debe estar registrado para descargar 900781.jt.

Debe estar registrado para descargar 900781.dwg.

Debe estar registrado para descargar 900780m_E.dxf.

Se ha añadido el artículo 900781 a favoritos.

El artículo 900781 ha sido añadido a la cesta de compra.

N.º art. 900782 SPD+POP 2 255 C40

Debe estar registrado para descargar 900782.stp.

Debe estar registrado para descargar 900782.igs.

Debe estar registrado para descargar 900782.jt.

Debe estar registrado para descargar 900782.dwg.

Debe estar registrado para descargar 900780m_E.dxf.

Se ha añadido el artículo 900782 a favoritos.

El artículo 900782 ha sido añadido a la cesta de compra.

Four-pole SPD+POP+MCB

N.º art. 900785 SPD+POP 4 255 C25

Debe estar registrado para descargar 900785.stp.

Debe estar registrado para descargar 900786.igs.

Debe estar registrado para descargar 900785.jt.

Debe estar registrado para descargar 900785.dwg.

Debe estar registrado para descargar 900785m_E.dxf.

Se ha añadido el artículo 900785 a favoritos.

El artículo 900785 ha sido añadido a la cesta de compra.

N.º art. 900786 SPD+POP 4 255 C32

Debe estar registrado para descargar 900786.stp.

Debe estar registrado para descargar 900786.igs.

Debe estar registrado para descargar 900786.jt.

Debe estar registrado para descargar 900786.dwg.

Debe estar registrado para descargar 900785m_E.dxf.

Se ha añadido el artículo 900786 a favoritos.

El artículo 900786 ha sido añadido a la cesta de compra.

N.º art. 900787 SPD+POP 4 255 C40

Debe estar registrado para descargar 900787.stp.

Debe estar registrado para descargar 900787.igs.

Debe estar registrado para descargar 900787.jt.

Debe estar registrado para descargar 900787.dwg.

Debe estar registrado para descargar 900785m_E.dxf.

Se ha añadido el artículo 900787 a favoritos.

El artículo 900787 ha sido añadido a la cesta de compra.

N.º art. 900788 SPD+POP 4 255 C63

Debe estar registrado para descargar 900788.stp.

Debe estar registrado para descargar 900788.igs.

Debe estar registrado para descargar 900788.jt.

Debe estar registrado para descargar 900788.dwg.

Debe estar registrado para descargar 900785m_E.dxf.

Se ha añadido el artículo 900788 a favoritos.

El artículo 900788 ha sido añadido a la cesta de compra.

Two-pole POP+MCB

N.º art. 900760 POP 2 255 C25

Debe estar registrado para descargar 900760.stp.

Debe estar registrado para descargar 900760.igs.

Debe estar registrado para descargar 900760.jt.

Debe estar registrado para descargar 900761.dwg.

Debe estar registrado para descargar 900760m_E.dxf.

Se ha añadido el artículo 900760 a favoritos.

El artículo 900760 ha sido añadido a la cesta de compra.

N.º art. 900761 POP 2 255 C32

Debe estar registrado para descargar 900761.stp.

Debe estar registrado para descargar 900761.igs.

Debe estar registrado para descargar 900761.jt.

Debe estar registrado para descargar 900761.dwg.

Debe estar registrado para descargar 900760m_E.dxf.

Se ha añadido el artículo 900761 a favoritos.

El artículo 900761 ha sido añadido a la cesta de compra.

N.º art. 900762 POP 2 255 C40

Debe estar registrado para descargar 900762.stp.

Debe estar registrado para descargar 900762.igs.

Debe estar registrado para descargar 900762.jt.
