DEHNguard modular NL

Prewired complete unit consisting of a base part and plug-in protection modules
Energy coordination with other arresters of the Red/Line product family
High discharge capacity due to heavy-duty zinc oxide varistors/spark gaps
High reliability due to "Thermo Dynamic Control" SPD monitoring device
Easy replacement of protection modules without tools due to module locking system with module release button
Vibration and shock-tested according to EN 60068-2

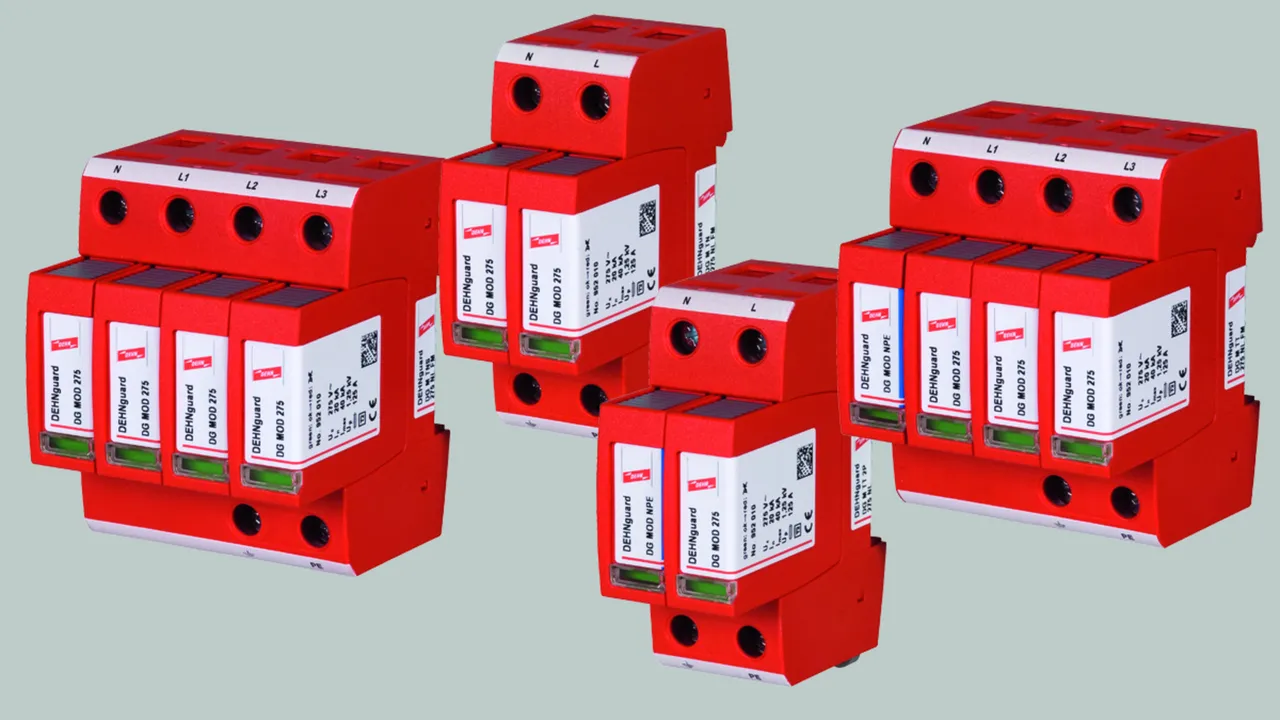

DEHNguard M TNS 275 NL (FM)

Modular surge arrester for TN-S systems, neutral conductor on the left side

2 Productos

N.º art. 952402 DG M TNS 275 NL

GTIN 4013364110014, N.º de arancel aduanero (EU): 85363030, Peso bruto: 436.70 g, Empaquetado: 1.00 pc(s)

Figuras

Más información

Archivos CAD

Certificados

Datos técnicos

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Voltage protection level at 5 kA (U_P )	≤ 1 kV
Max. mains-side overcurrent protection	125 gG
Approvals	KEMA, VDE, UL

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Voltage protection level at 5 kA (U_P )	≤ 1 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 gG
Short circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) (UT) – Characteristic	440 V / 120 min. – safe failure
Operating temperature range (T_U )	-40°C...+80°C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid/flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Dimensions	4 module(s), DIN 43880
Approvals	KEMA, VDE, UL

Se ha añadido el artículo 952402 a favoritos.

Ir a favoritos

El artículo 952402 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 952407 DG M TNS 275 NL FM

GTIN 4013364110021, N.º de arancel aduanero (EU): 85363030, Peso bruto: 440.00 g, Empaquetado: 1.00 pc(s)

Figuras

Más información

Archivos CAD

Certificados

Datos técnicos

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Voltage protection level at 5 kA (U_P )	≤ 1 kV
Max. mains-side overcurrent protection	125 gG
Approvals	KEMA, VDE, UL
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Voltage protection level at 5 kA (U_P )	≤ 1 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 gG
Short circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) (UT) – Characteristic	440 V / 120 min. – safe failure
Operating temperature range (T_U )	-40°C...+80°C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid/flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Dimensions	4 module(s), DIN 43880
Approvals	KEMA, VDE, UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A, 125 V / 0.2 A, 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid/flexible

Se ha añadido el artículo 952407 a favoritos.

Ir a favoritos

El artículo 952407 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

DEHNguard M TT 275 NL (FM)

Modular surge arrester for TT and TN-S systems (3+1 configuration), neutral conductor on the left side.

2 Productos

N.º art. 952312 DG M TT 275 NL

GTIN 4013364113992, N.º de arancel aduanero (EU): 85363030, Peso bruto: 441.60 g, Empaquetado: 1.00 pc(s)

Figuras

Más información

Archivos CAD

Certificados

Datos técnicos

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [L-N] at 5 kA (U_P )	≤ 1 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	125 gG
Approvals	KEMA, VDE, UL

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	12 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [L-N] at 5 kA (U_P )	≤ 1 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 gG
Short circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) [L-N] (UT) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (UT) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (UT) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40°C...+80°C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm^² solid/flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Dimensions	4 module(s), DIN 43880
Approvals	KEMA, VDE, UL

Se ha añadido el artículo 952312 a favoritos.

Ir a favoritos

El artículo 952312 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 952317 DG M TT 275 NL FM

GTIN 4013364114005, N.º de arancel aduanero (EU): 85363030, Peso bruto: 445.10 g, Empaquetado: 1.00 pc(s)

Figuras

Más información

Archivos CAD

Certificados

Datos técnicos

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [L-N] at 5 kA (U_P )	≤ 1 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	125 gG
Approvals	KEMA, VDE, UL
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	12 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [L-N] at 5 kA (U_P )	≤ 1 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 gG
Short circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) [L-N] (UT) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (UT) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (UT) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40°C...+80°C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid/flexible
Cross-sectional area (max.)	35 mm² stranded/25 mm² flexible
For mounting on	35 mm DIN rail acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Dimensions	4 module(s), DIN 43880
Approvals	KEMA, VDE, UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V/0.5 A
Switching capacity (d.c.)	250 V / 0.1 A, 125 V / 0.2 A, 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	1.5 mm² solid/flexible

Se ha añadido el artículo 952317 a favoritos.

Ir a favoritos

El artículo 952317 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

DEHNguard M TN 275 NL (FM)

Modular surge arrester for single-phase 230 V TN systems, neutral conductor on the left side

2 Productos

N.º art. 952202 DG M TN 275 NL

GTIN 4013364109964, N.º de arancel aduanero (EU): 85363030, Peso bruto: 241.80 g, Empaquetado: 1.00 pc(s)

Figuras

Más información

Archivos CAD

Certificados

Datos técnicos

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Voltage protection level at 5 kA (U_P )	≤ 1 kV
Max. mains-side overcurrent protection	125 gG
Approvals	KEMA, VDE, UL

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Voltage protection level at 5 kA (U_P )	≤ 1 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 gG
Short circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) (UT) – Characteristic	440 V / 120 min. – safe failure
Operating temperature range (T_U )	-40°C...+80°C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm^² solid/flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Dimensions	2 module(s), DIN 43880
Approvals	KEMA, VDE, UL

Se ha añadido el artículo 952202 a favoritos.

Ir a favoritos

El artículo 952202 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 952207 DG M TN 275 NL FM

GTIN 4013364109971, N.º de arancel aduanero (EU): 85363030, Peso bruto: 246.70 g, Empaquetado: 1.00 pc(s)

Figuras

Más información

Archivos CAD

Certificados

Datos técnicos

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Voltage protection level at 5 kA (U_P )	≤ 1 kV
Max. mains-side overcurrent protection	125 gG
Approvals	KEMA, VDE, UL
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Voltage protection level at 5 kA (U_P )	≤ 1 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 gG
Short circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) (UT) – Characteristic	440 V / 120 min. – safe failure
Operating temperature range (T_U )	-40°C...+80°C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid/flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Dimensions	2 module(s), DIN 43880
Approvals	KEMA, VDE, UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A, 125 V / 0.2 A, 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	1.5 mm² solid/flexible

Se ha añadido el artículo 952207 a favoritos.

Ir a favoritos

El artículo 952207 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

DEHNguard M TT 2P 275 NL (FM)

Modular surge arrester for single-phase 230 V TT and TN systems (1+1 configuration), neutral conductor on the left side

2 Productos

N.º art. 952112 DG M TT 2P 275 NL

GTIN 4013364109995, N.º de arancel aduanero (EU): 85363030, Peso bruto: 241.10 g, Empaquetado: 1.00 pc(s)

Figuras

Más información

Archivos CAD

Certificados

Datos técnicos

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [L-N] at 5 kA (U_P )	≤ 1 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	125 gG
Approvals	KEMA, VDE, UL

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	12 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [L-N] at 5 kA (U_P )	≤ 1 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 gG
Short circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) [L-N] (UT) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (UT) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (UT) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40°C...+80°C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid/flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Dimensions	2 module(s), DIN 43880
Approvals	KEMA, VDE, UL

Se ha añadido el artículo 952112 a favoritos.

Ir a favoritos

El artículo 952112 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 952117 DG M TT 2P 275 NL FM

GTIN 4013364110007, N.º de arancel aduanero (EU): 85363030, Peso bruto: 244.80 g, Empaquetado: 1.00 pc(s)

Figuras

Más información

Archivos CAD

Certificados

Datos técnicos

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [L-N] at 5 kA (U_P )	≤ 1 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	125 gG
Approvals	KEMA, VDE, UL
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	12 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [L-N] at 5 kA (U_P )	≤ 1 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 gG
Short circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) [L-N] (UT) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (UT) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (UT) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40°C...+80°C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid/flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Dimensions	2 module(s), DIN 43880
Approvals	KEMA, VDE, UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A, 125 V / 0.2 A, 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	1.5 mm² solid/flexible

Se ha añadido el artículo 952117 a favoritos.

Ir a favoritos

El artículo 952117 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

DEHNguard M SN1731

Modular surge arrester for single-phase 230 V TT and TN systems (1+1 configuration), neutral conductor on the left side

1 Producto

N.º art. 952112 DG M TT 2P 275 NL

GTIN 4013364109995, N.º de arancel aduanero (EU): 85363030, Peso bruto: 241.10 g, Empaquetado: 1.00 pc(s)

Figuras

Más información

Certificados

Datos técnicos

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [L-N] at 5 kA (U_P )	≤ 1.25 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	125 gG
Approvals	VdS

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	12 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [L-N] at 5 kA (U_P )	≤ 1.25 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 gG
Short circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	50 kA_rms
Temporary overvoltage (TOV) [L-N] (UT) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (UT) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (UT) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40°C...+80°C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Dimensions	2 module(s), DIN 43880
Approvals	VdS

Se ha añadido el artículo 952112 a favoritos.

Ir a favoritos

El artículo 952112 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

Resultados de los productos (0)

Results for content (0)

DEHNguard modular NL

DEHNguard M TNS 275 NL (FM)

N.º art. 952402 DG M TNS 275 NL

Se ha añadido el artículo 952402 a favoritos.

El artículo 952402 ha sido añadido a la cesta de compra.

N.º art. 952407 DG M TNS 275 NL FM

Se ha añadido el artículo 952407 a favoritos.

El artículo 952407 ha sido añadido a la cesta de compra.

DEHNguard M TT 275 NL (FM)

N.º art. 952312 DG M TT 275 NL

Se ha añadido el artículo 952312 a favoritos.

El artículo 952312 ha sido añadido a la cesta de compra.

N.º art. 952317 DG M TT 275 NL FM

Se ha añadido el artículo 952317 a favoritos.

El artículo 952317 ha sido añadido a la cesta de compra.

DEHNguard M TN 275 NL (FM)

N.º art. 952202 DG M TN 275 NL

Se ha añadido el artículo 952202 a favoritos.

El artículo 952202 ha sido añadido a la cesta de compra.

N.º art. 952207 DG M TN 275 NL FM

Se ha añadido el artículo 952207 a favoritos.

El artículo 952207 ha sido añadido a la cesta de compra.

DEHNguard M TT 2P 275 NL (FM)

N.º art. 952112 DG M TT 2P 275 NL

Se ha añadido el artículo 952112 a favoritos.

El artículo 952112 ha sido añadido a la cesta de compra.

N.º art. 952117 DG M TT 2P 275 NL FM

Se ha añadido el artículo 952117 a favoritos.

El artículo 952117 ha sido añadido a la cesta de compra.

DEHNguard M SN1731

N.º art. 952112 DG M TT 2P 275 NL

Se ha añadido el artículo 952112 a favoritos.

El artículo 952112 ha sido añadido a la cesta de compra.

DEHNguard modular NL

DEHNguard M TNS 275 NL (FM)

N.º art. 952402 DG M TNS 275 NL

Debe estar registrado para descargar 952400.stp.

Debe estar registrado para descargar 952400.igs.

Debe estar registrado para descargar 952400.jt.

Debe estar registrado para descargar 952400.dwg.

Debe estar registrado para descargar 952407m_E.dxf.

Se ha añadido el artículo 952402 a favoritos.

El artículo 952402 ha sido añadido a la cesta de compra.

N.º art. 952407 DG M TNS 275 NL FM

Debe estar registrado para descargar 952405.stp.

Debe estar registrado para descargar 952405.igs.

Debe estar registrado para descargar 952405.jt.

Debe estar registrado para descargar 952405.dwg.

Debe estar registrado para descargar 952407m_E.dxf.

Se ha añadido el artículo 952407 a favoritos.

El artículo 952407 ha sido añadido a la cesta de compra.

DEHNguard M TT 275 NL (FM)

N.º art. 952312 DG M TT 275 NL

Debe estar registrado para descargar 952400.stp.

Debe estar registrado para descargar 952400.igs.

Debe estar registrado para descargar 952400.jt.

Debe estar registrado para descargar 952400.dwg.

Debe estar registrado para descargar 952312m_E.dxf.

Se ha añadido el artículo 952312 a favoritos.

El artículo 952312 ha sido añadido a la cesta de compra.

N.º art. 952317 DG M TT 275 NL FM

Debe estar registrado para descargar 952405.stp.

Debe estar registrado para descargar 952405.igs.

Debe estar registrado para descargar 952405.jt.

Debe estar registrado para descargar 952405.dwg.

Debe estar registrado para descargar 952407m_E.dxf.

Se ha añadido el artículo 952317 a favoritos.

El artículo 952317 ha sido añadido a la cesta de compra.

DEHNguard M TN 275 NL (FM)

N.º art. 952202 DG M TN 275 NL

Debe estar registrado para descargar 952200.stp.

Debe estar registrado para descargar 952200.igs.

Debe estar registrado para descargar 952200.jt.

Debe estar registrado para descargar 952200.dwg.

Debe estar registrado para descargar 952202m_E.dxf.

Se ha añadido el artículo 952202 a favoritos.

El artículo 952202 ha sido añadido a la cesta de compra.

N.º art. 952207 DG M TN 275 NL FM

Debe estar registrado para descargar 952205.stp.

Debe estar registrado para descargar 952205.igs.

Debe estar registrado para descargar 952205.jt.

Debe estar registrado para descargar 952205.dwg.

Debe estar registrado para descargar 952207m_E.dxf.

Se ha añadido el artículo 952207 a favoritos.

El artículo 952207 ha sido añadido a la cesta de compra.

DEHNguard M TT 2P 275 NL (FM)

N.º art. 952112 DG M TT 2P 275 NL

Debe estar registrado para descargar 952200.stp.

Debe estar registrado para descargar 952200.igs.

Debe estar registrado para descargar 952200.jt.

Debe estar registrado para descargar 952200.dwg.

Debe estar registrado para descargar 952112m_E.dxf.

Se ha añadido el artículo 952112 a favoritos.

El artículo 952112 ha sido añadido a la cesta de compra.

N.º art. 952117 DG M TT 2P 275 NL FM

Debe estar registrado para descargar 952205.stp.

Debe estar registrado para descargar 952205.igs.

Debe estar registrado para descargar 952205.jt.

Debe estar registrado para descargar 952205.dwg.

Debe estar registrado para descargar 952117m_E.dxf.

Se ha añadido el artículo 952117 a favoritos.

El artículo 952117 ha sido añadido a la cesta de compra.

DEHNguard M SN1731

N.º art. 952112 DG M TT 2P 275 NL

Se ha añadido el artículo 952112 a favoritos.

El artículo 952112 ha sido añadido a la cesta de compra.
